10. How to do a Health Check for a Connection?

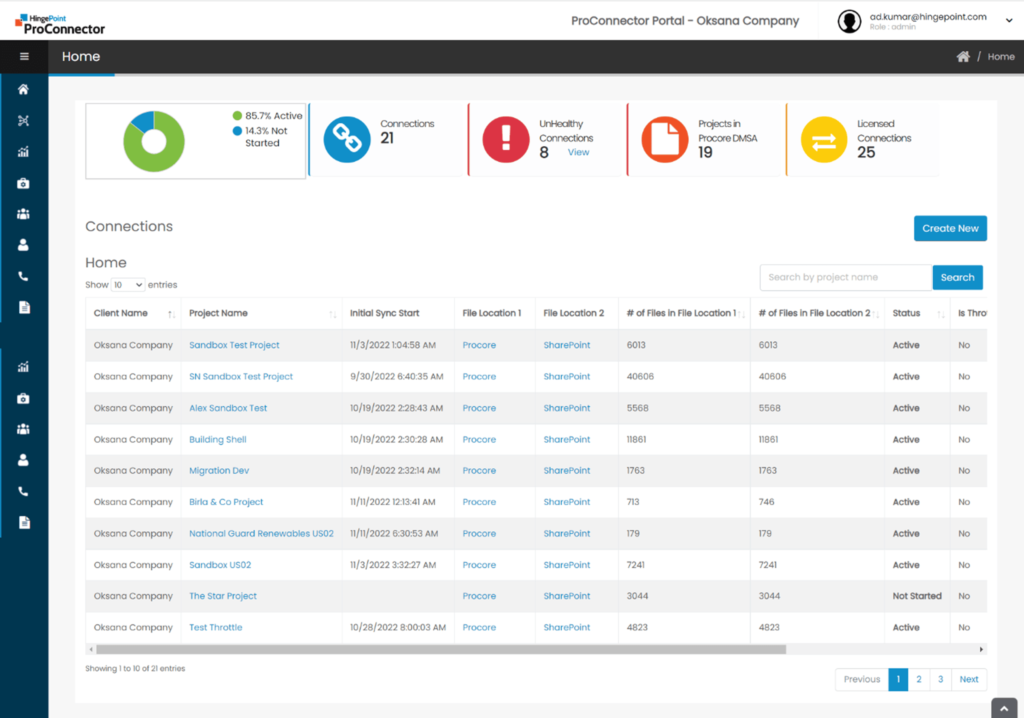

1. Navigate to the HingePoint ProConnector Web Application.

Health Check1 | Hingepoint

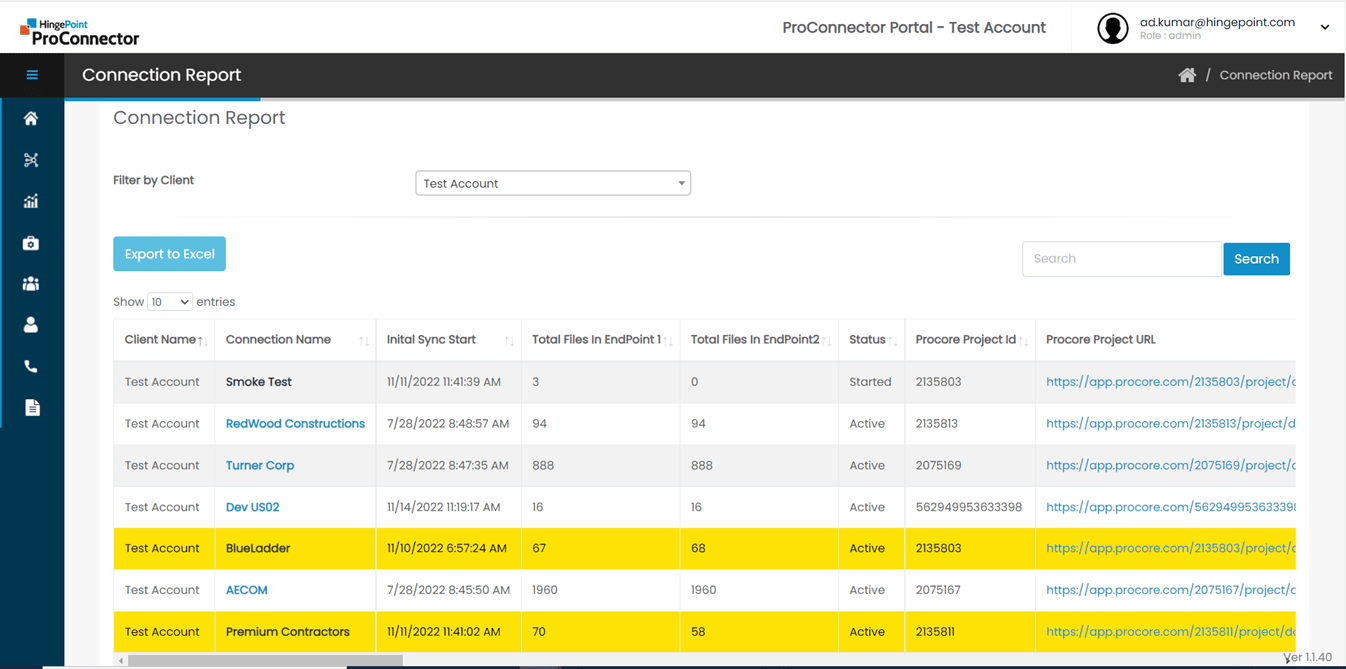

2. In the Dashboard page, click on the View link in the Unhealthy Connections KPI card. This will navigate the user to the Connection Report page. Click on the Connection highlighted in yellow indicating an unhealthy connection which has delta.

Health Check 2 | Hingepoint

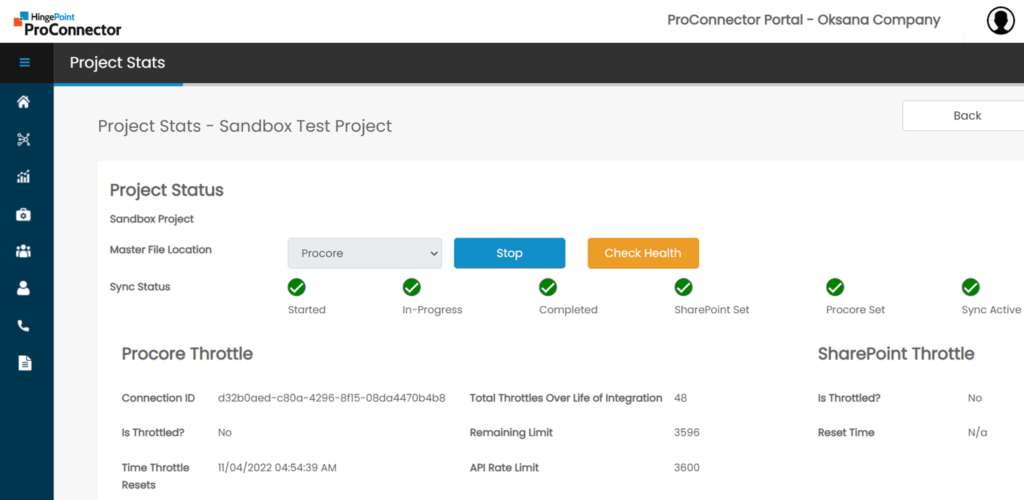

3. In the Connection details page, click on the Health Check button.

Health Check 3 | Hingepoint

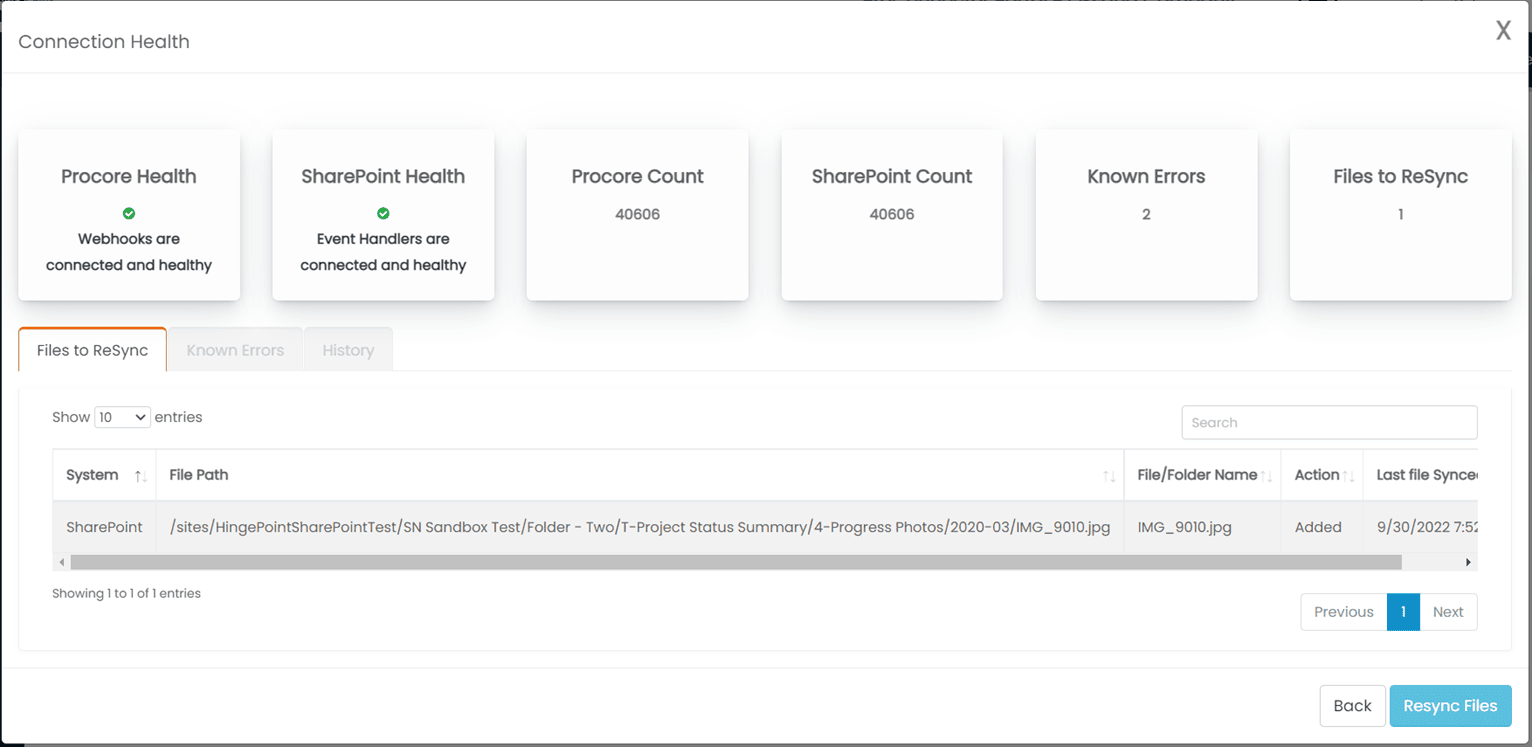

4. Connection Health Check pop up will be displayed with Procore and SharePoint Health.

  • If the Procore Webhooks are connected and healthy, a green check mark will be displayed for Procore Health
  • If the SharePoint Event Handlers are connected and healthy, a green check mark will be displayed for SharePoint Health
  • Procore file count and SharePoint file count will be displayed.
  • If there is delta between these two file counts, those will be listed under ‘Files to ReSync’ [which have failed to sync]
  • Known Error count will be listed if there are files which have not synced to the target location
  • Grid view of Files to ReSync, Known Errors, History will also be displayed in separate tabs
  • The number of Files to Resync displayed in the card needs to match with the number of records in the Files to ReSync tab
  • The number of Known Errors displayed in the card needs to match with the number of records in the Known Errors tab
  • History captures all the information about the connection with date and time
Health Check 4 | Hingepoint

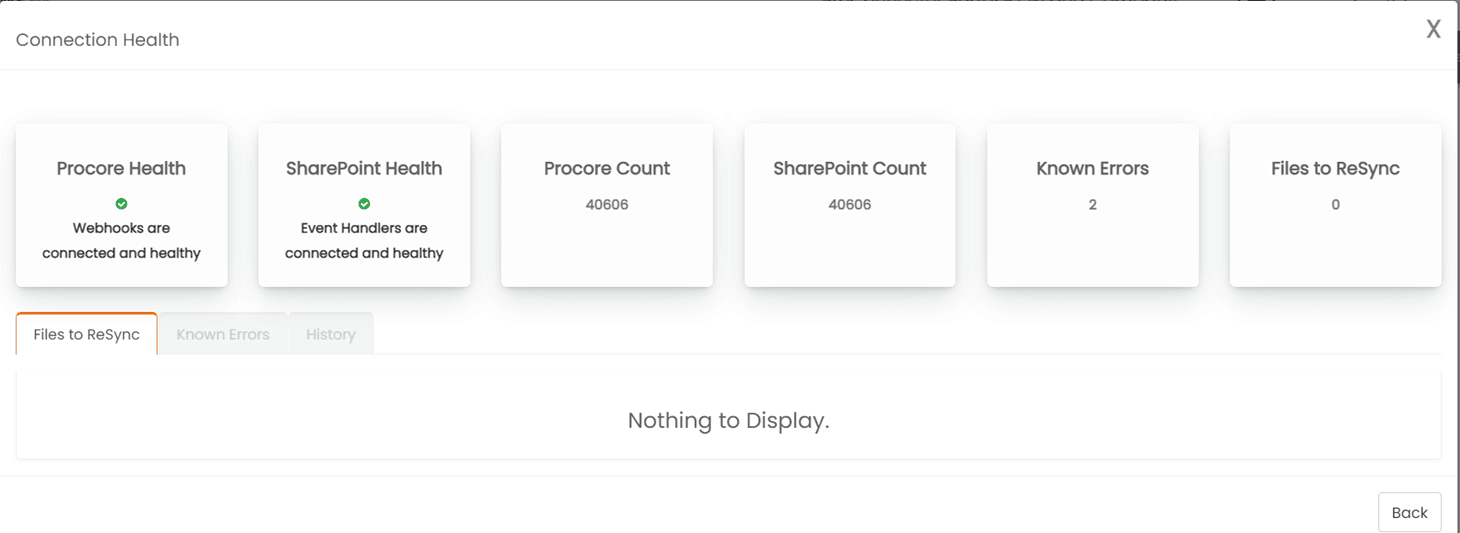

5. Click on the Resync Files button to sync the pending files which have failed to sync.

    • Sync In Progress success message will be displayed and the user will be navigated to the connection details page
    • The Connection will remain in the Active status and the sync will happen in the background
    • Once the sync is complete the delta file count will be 0
Health Check 5 | Hingepoint

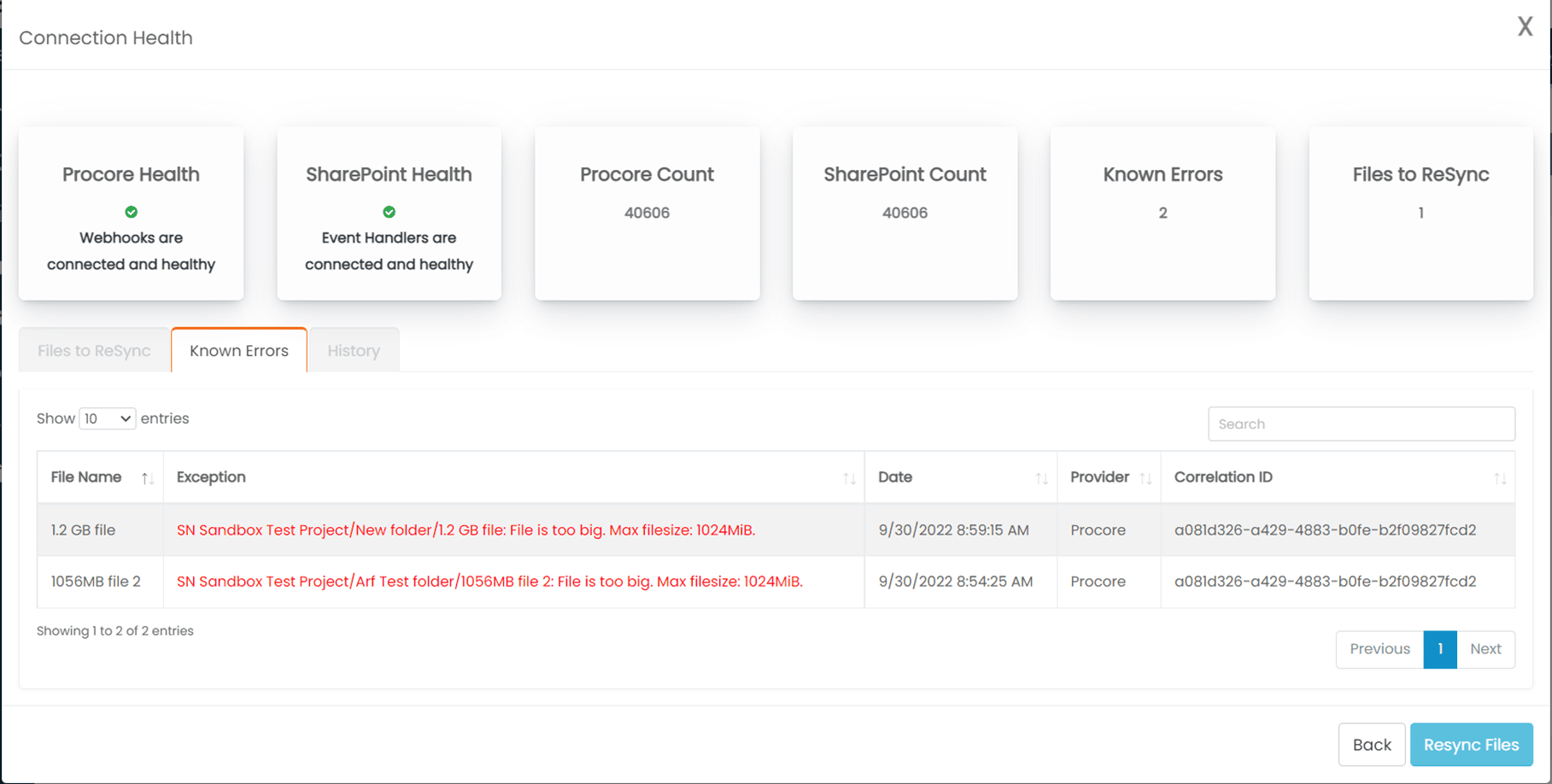

6. Click on the Known Errors tab in the grid which will not sync the files to the target location. [e.g., Big File Size which is more than 1 GB data].

Health Check6 | Hingepoint

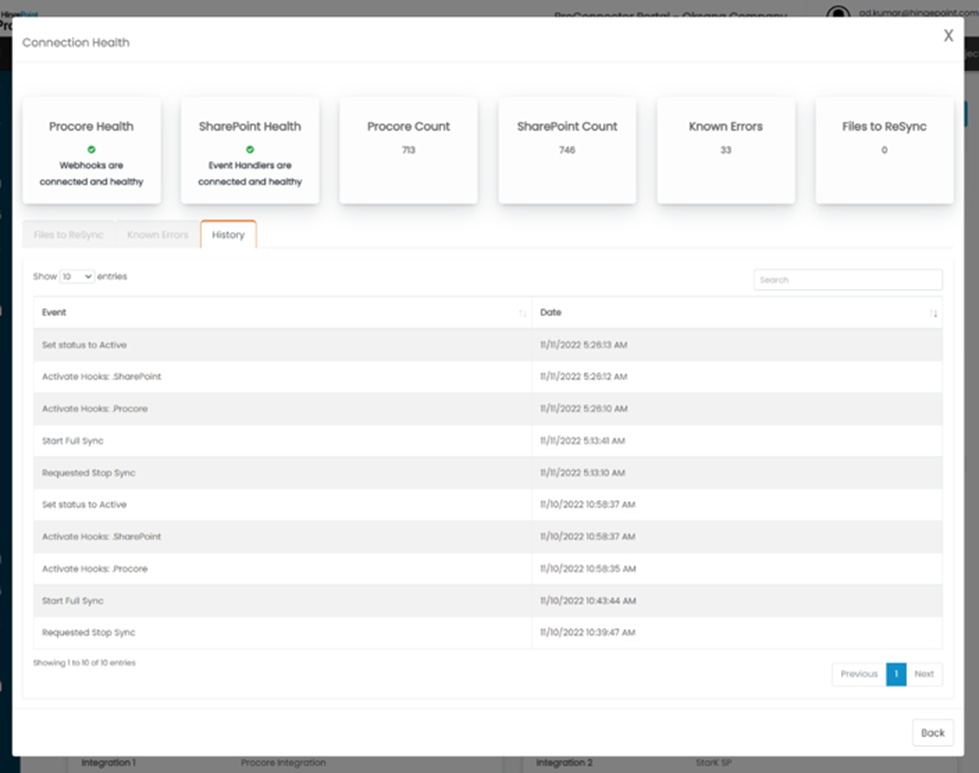

7. History tab captures the date and time of when the connection was started/stopped, when was the Sync map created, when was the SharePoint/Procore Webhooks were Active, when was the connection restarted, when was the pending files Resynced etc.,

Healthcheck7 | Hingepoint

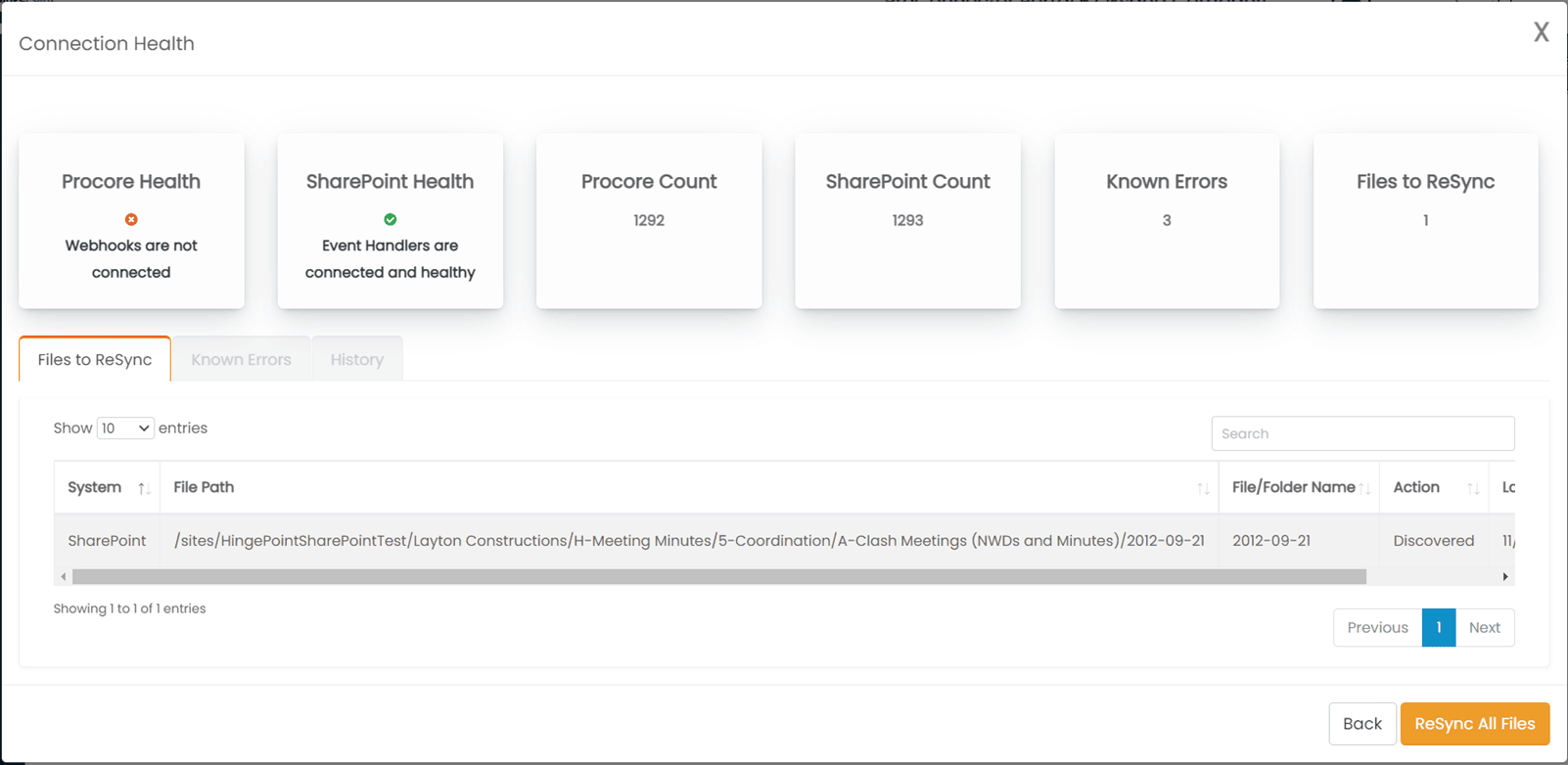

8. If the Procore webhooks are not hooked, OR if the SharePoint event receivers are not connected, the health check indicates with a red cross mark and ‘ReSync All Files’ button will be available.

9. The user will be indicated with a message asking to click on ‘ReSync All Files’ button.

  • Info! Please click the ReSync All Files button. If that doesn’t work, please contact support at dev.team@hingepoint.com and we will look into it.

10. Click on ‘ReSync All Files’ which will do a Full Resync of all the files and just not the missing files.

11. The Procore Webhooks and SharePoint Event Receivers must get activated once the full file Resync is completed. The Connection will remain in the Active status and the full sync will happen in the backend.

Health Check 8 | Hingepoint

12. If the file path is too long when downloaded, those files are listed as known Errors.

Health Check 9 | Hingepoint
